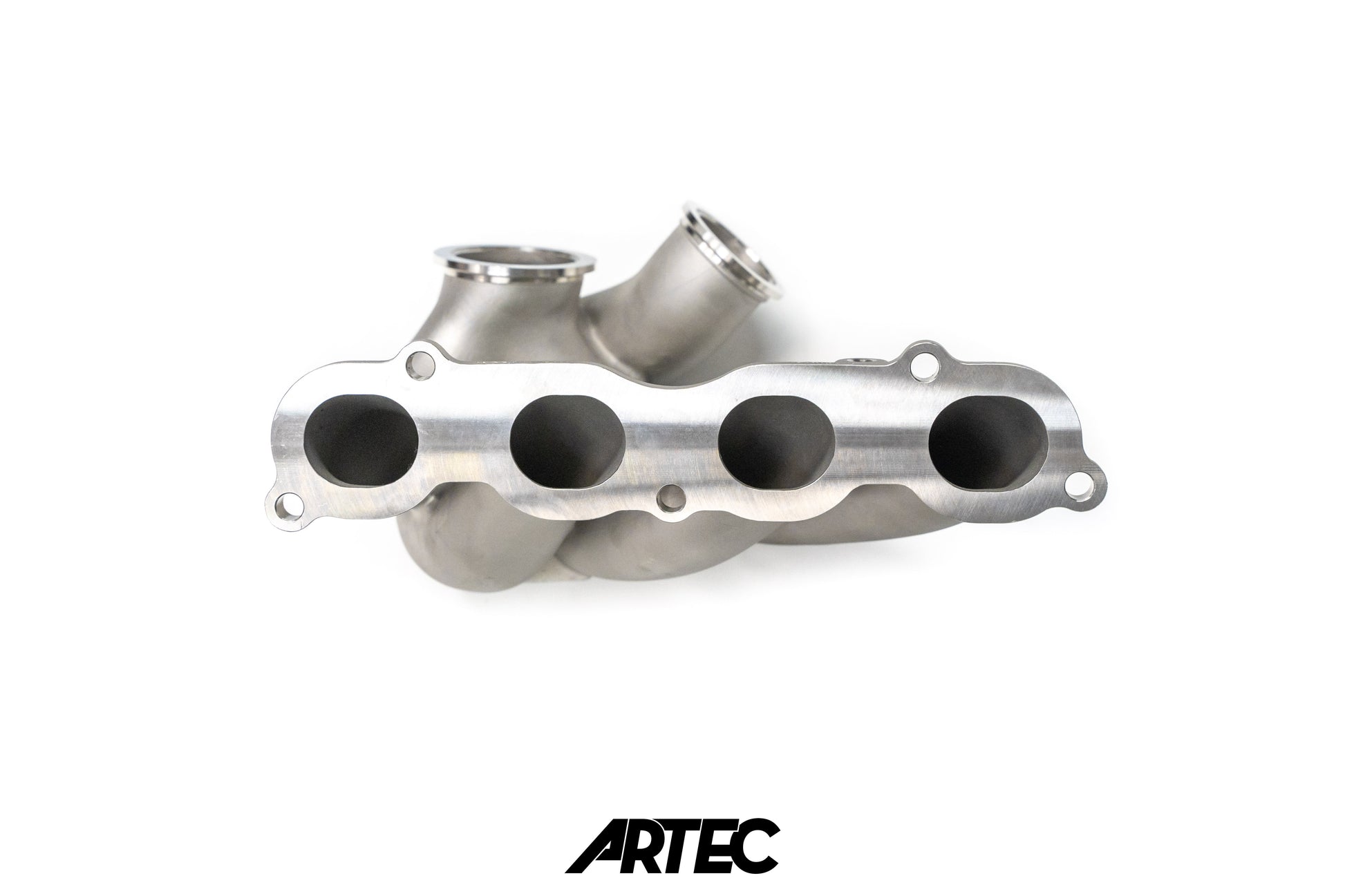

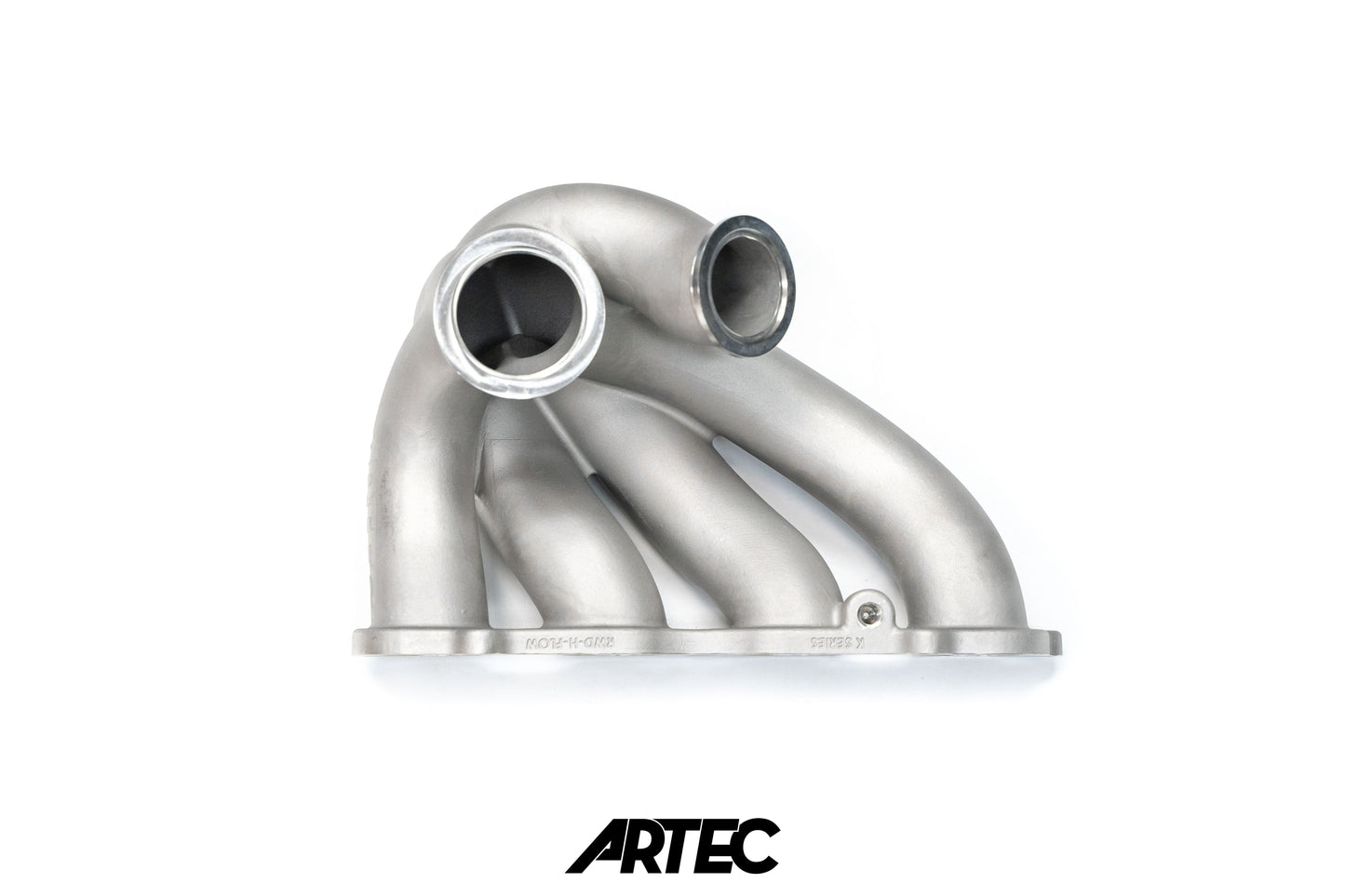

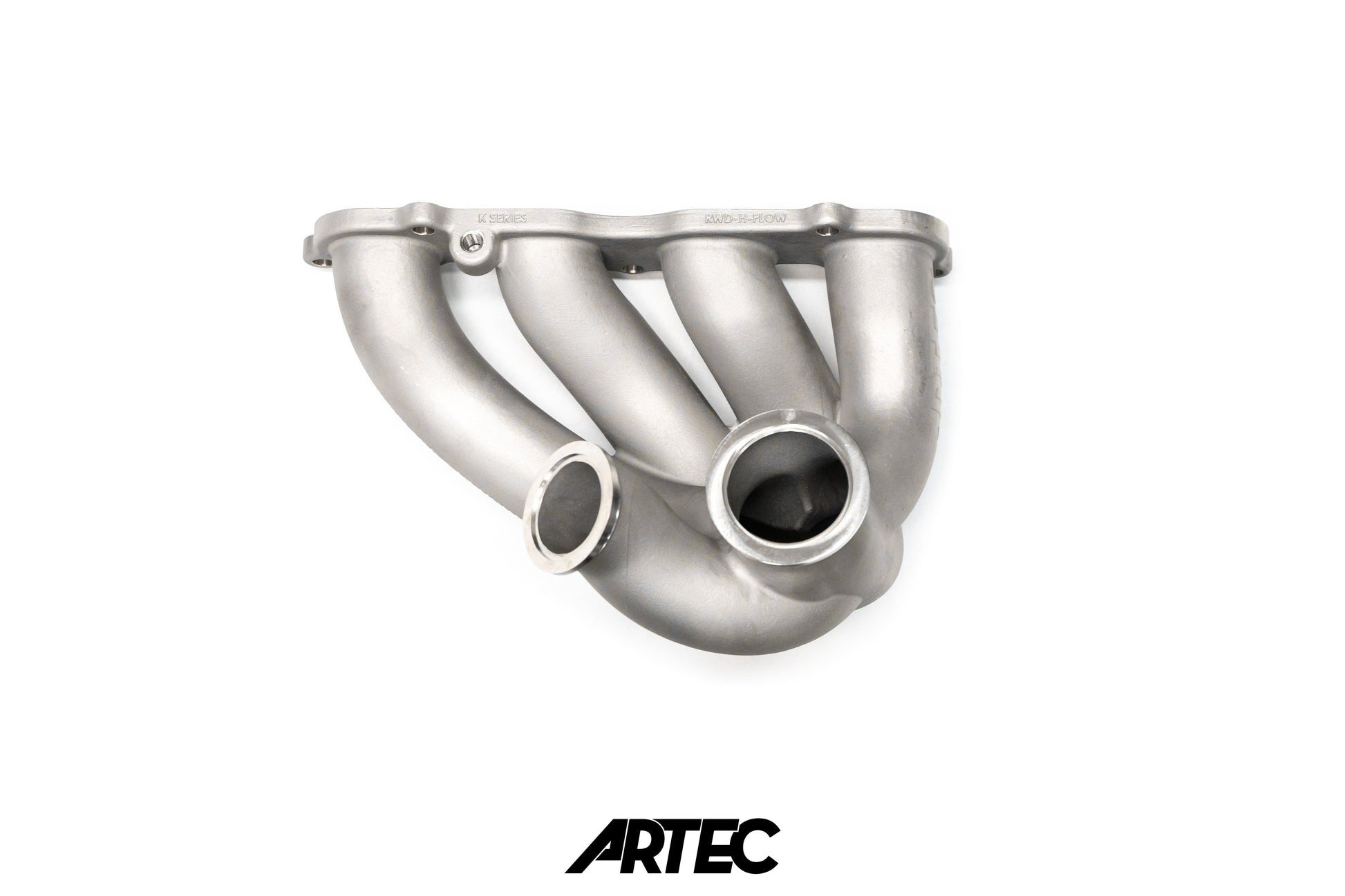

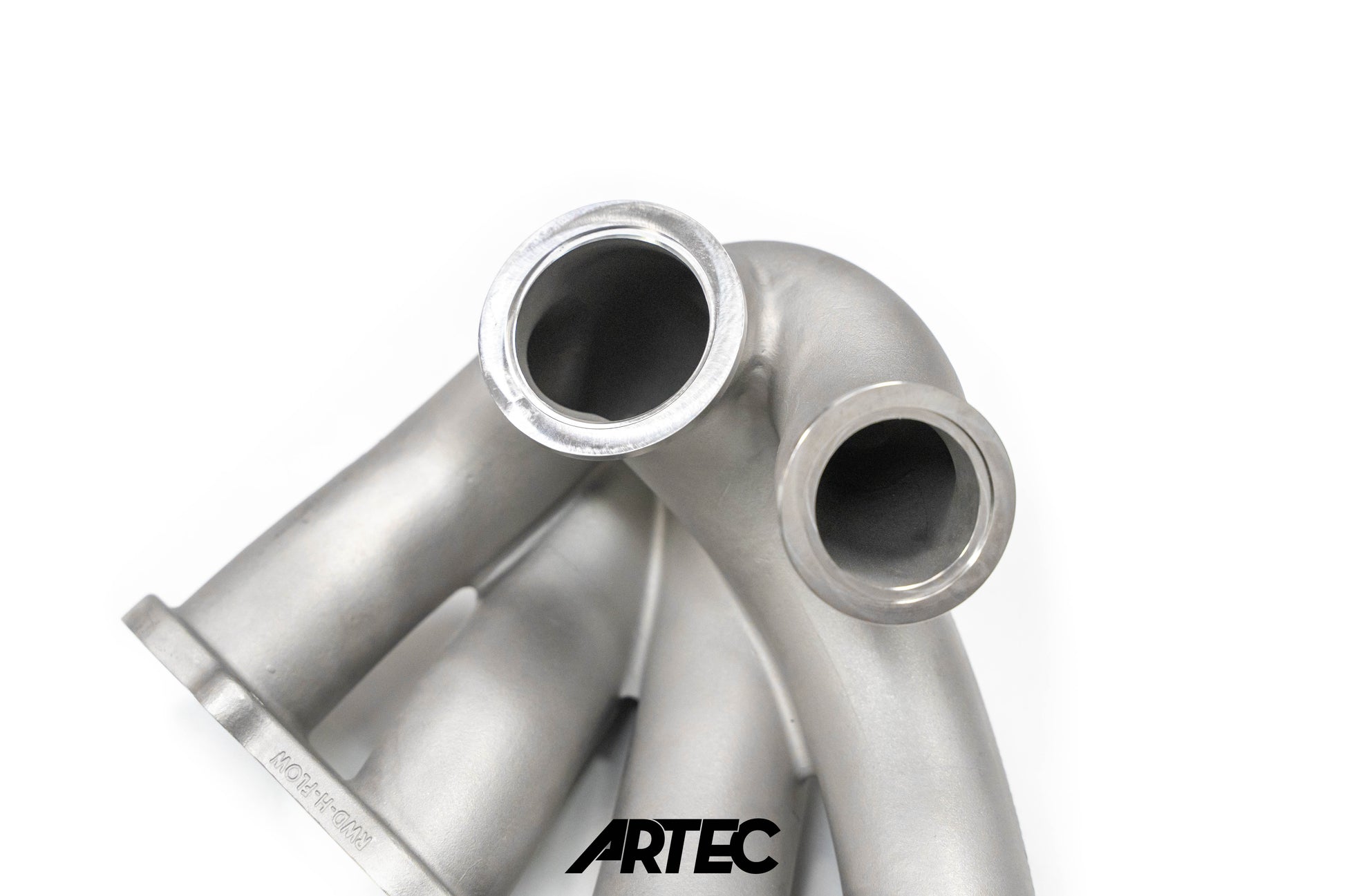

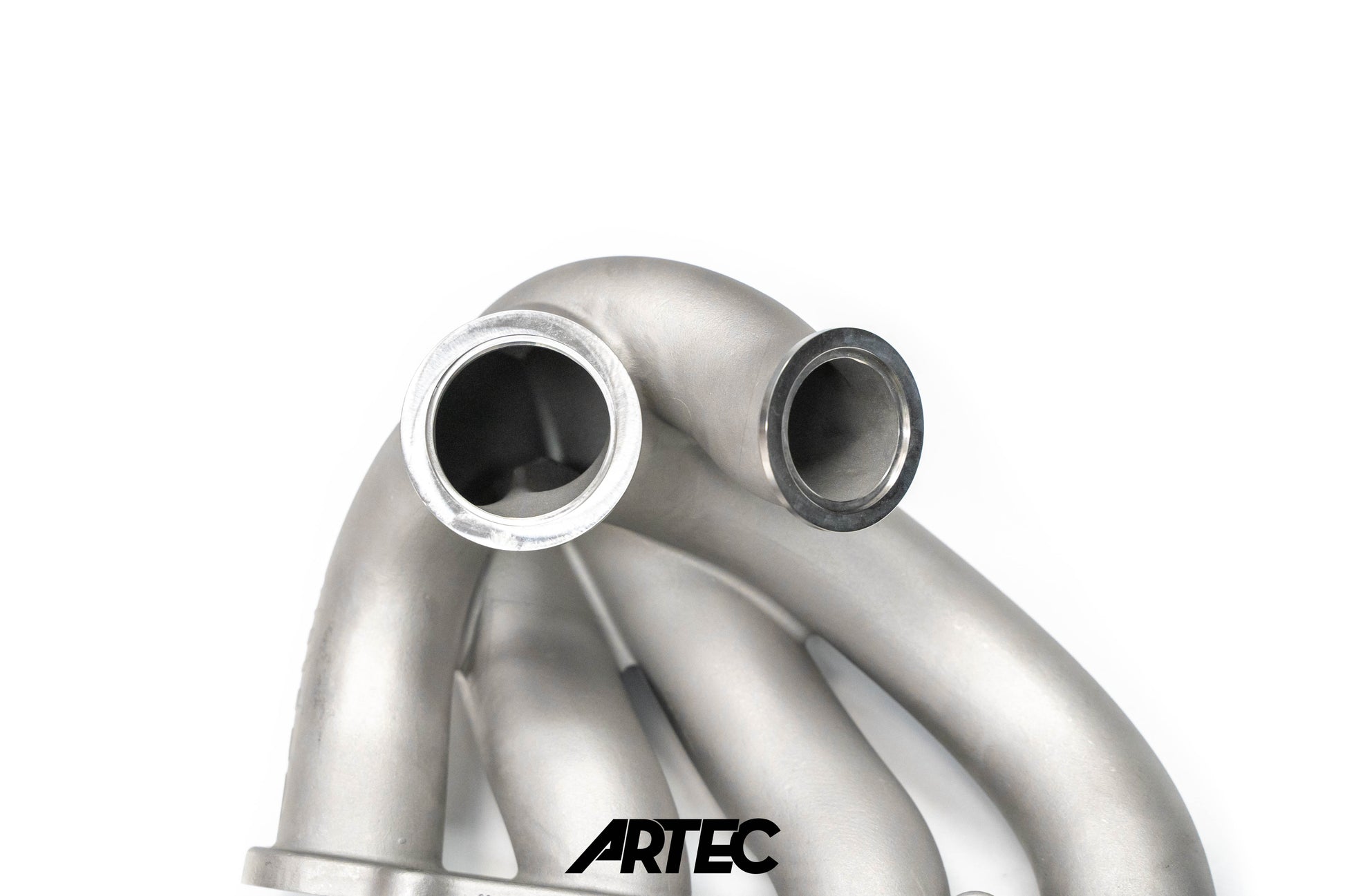

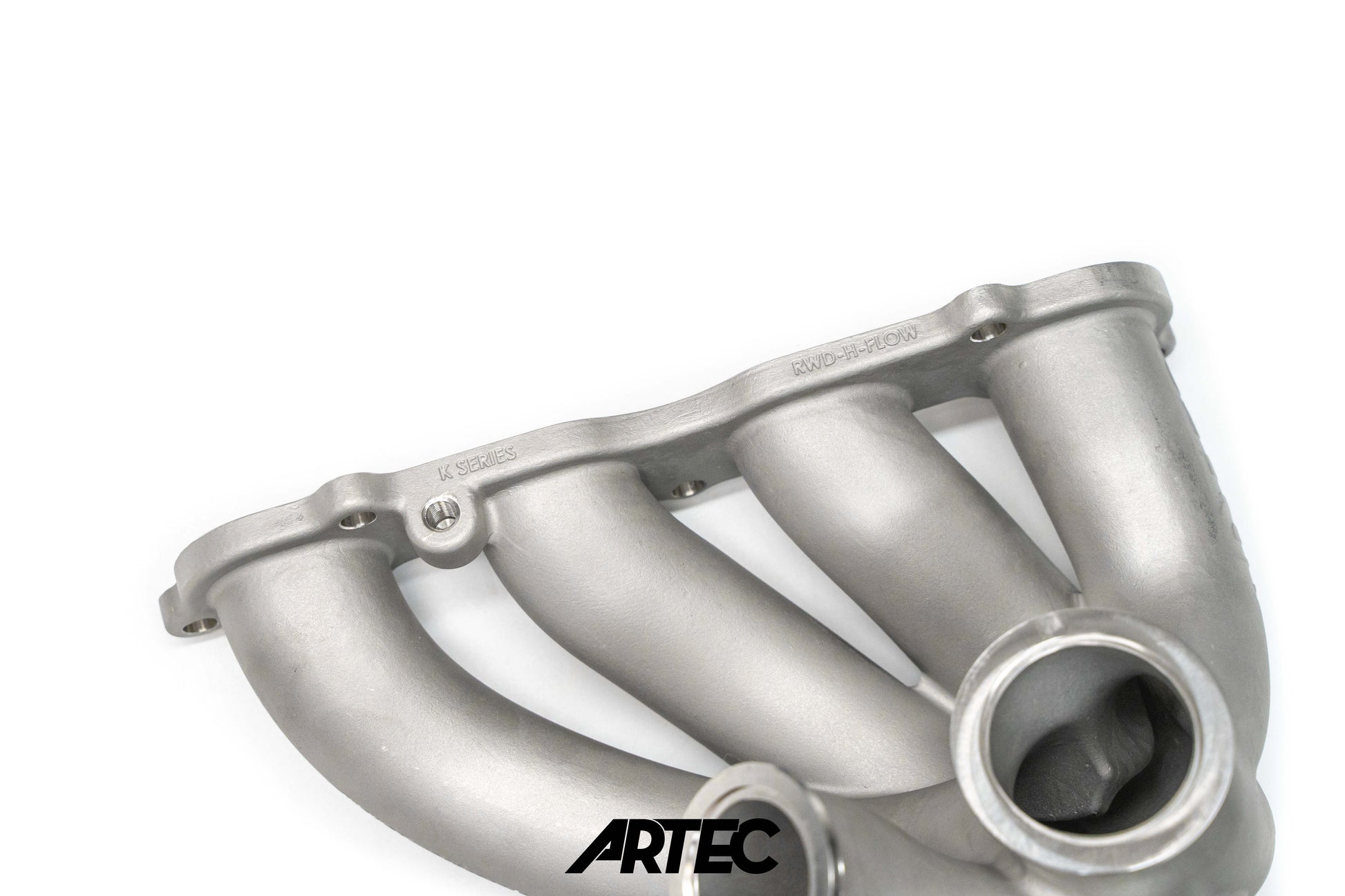

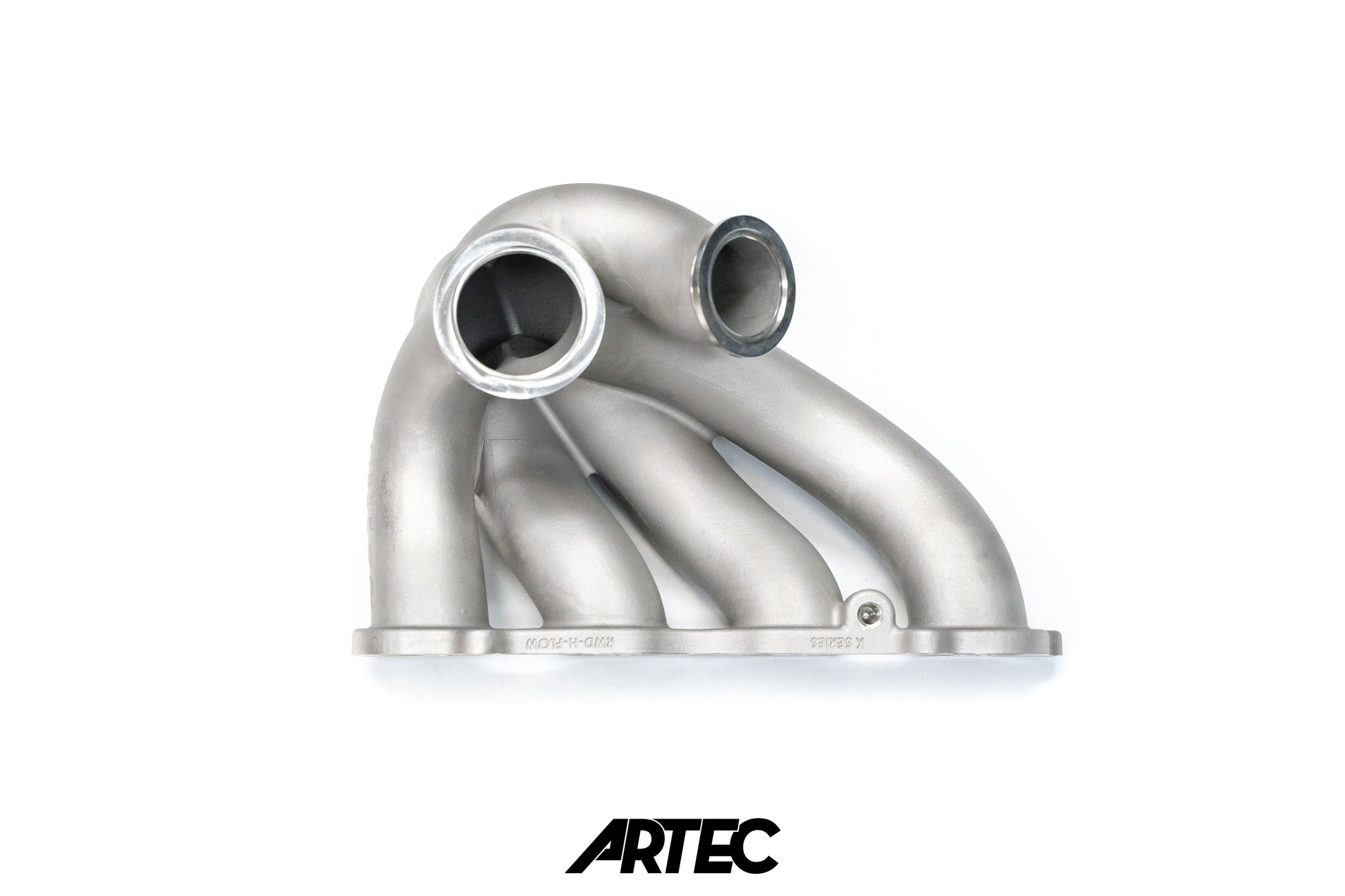

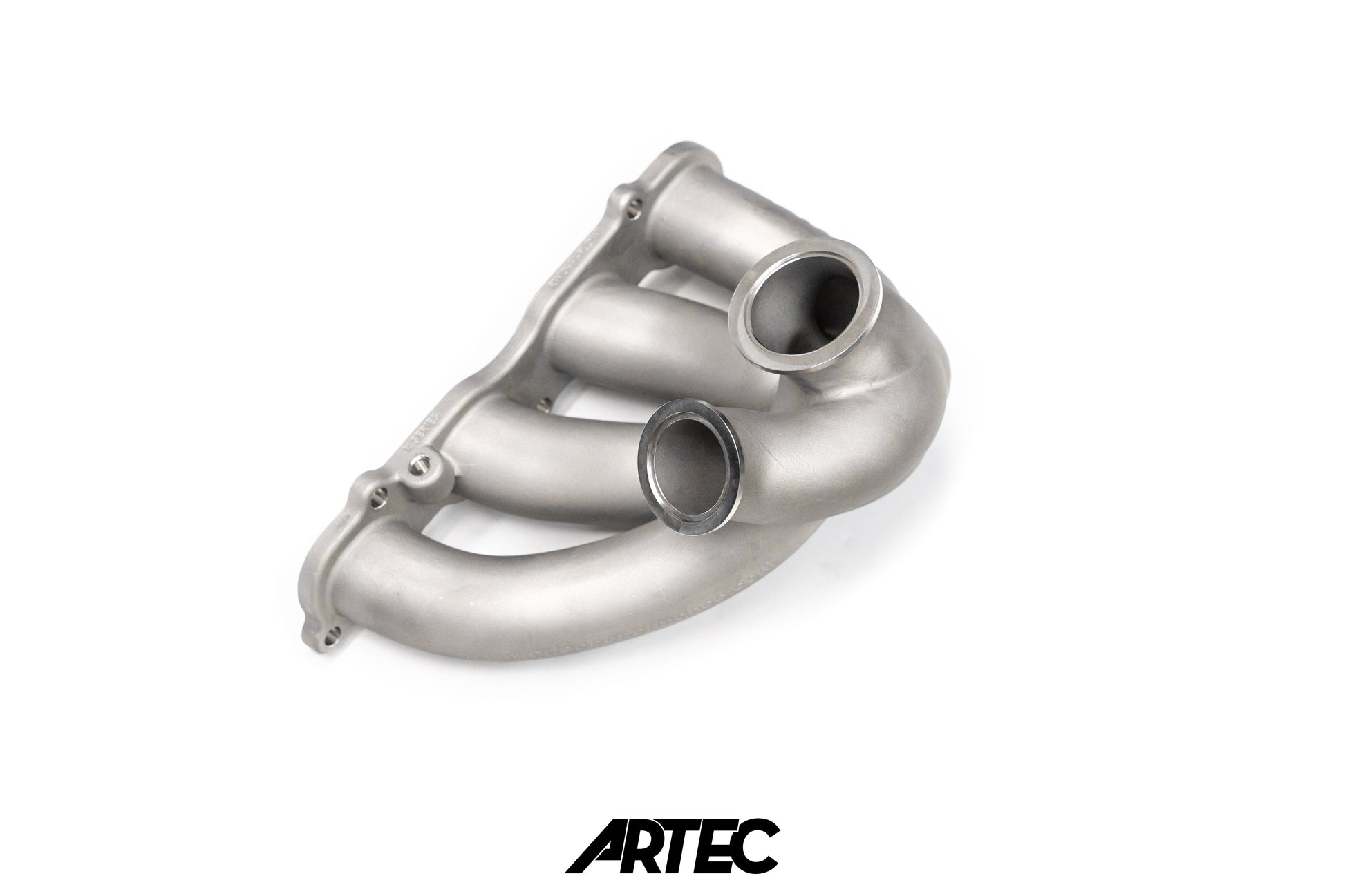

Honda K Series RWD High Flow V-Band Exhaust Manifold

Product Features:

• The High Flow Manifold Series is designed with enlarged runners and a 55mm outlet flange to optimise performance on pump fuel setups, and offers more top end performance for high boost ethanol setups in a similar compact design as our High Response Series
• Developed specifically for:
  • Regions without access to ethanol-blended fuels (such as Japan), where optimised flow efficiency is critical
  • High-power ethanol applications targeting in excess of 750whp
• High Flow 55mm ID turbine flange to suit Garrett, Precision and Turbosmart
• Single 44/45/46mm Wastegate Flange Mount with up to 50mm possible
• Integrated rear support bracket mounting point

Engine Compatibility

• Honda K20
• Honda K24

Turbocharger Compatibility

• The ARTEC High Flow V-Band Ring System allows you to install turbos from all of the big brands without having to chop and change flanges or manifolds!
• Features a High Flow 55mm turbo V-band flange and supports the following turbochargers by using the appropriate locating rings:

  • Garrett G25 to G40 compact (using the ARTEC G40C Turbine Housing)
  • Precision 6266 to 6466 & 6870 compact
  • Turbosmart 6266 to 6870 compact
• NOTE: Designed to fit Garrett, Precision and Turbosmart turbochargers, however turbochargers from other manufacturers may fit provided they use the same flange diameters and profiles

Wastegate Compatibility

• Features a single 44mm / 45mm / 46mm wastegate flange.

• NOTE: Designed around Turbosmart 45mm wastegate actuator, however wastegate actuators from other manufacturers may fit provided they use the same flange diameters and profiles

Package Contents:

• 1x Honda K Series High Flow V-Band Exhaust Manifold
• 1x ARTEC 55mm V-Band Locating Ring for Garrett / Turbosmart
• 1x ARTEC 55mm V-Band Locating Ring for Precision Turbo


Specifications:

• Material: SUS347 Stainless Steel
• Weight: 5kg

Notes:

• Designed in Australia with Lifetime Warranty*
