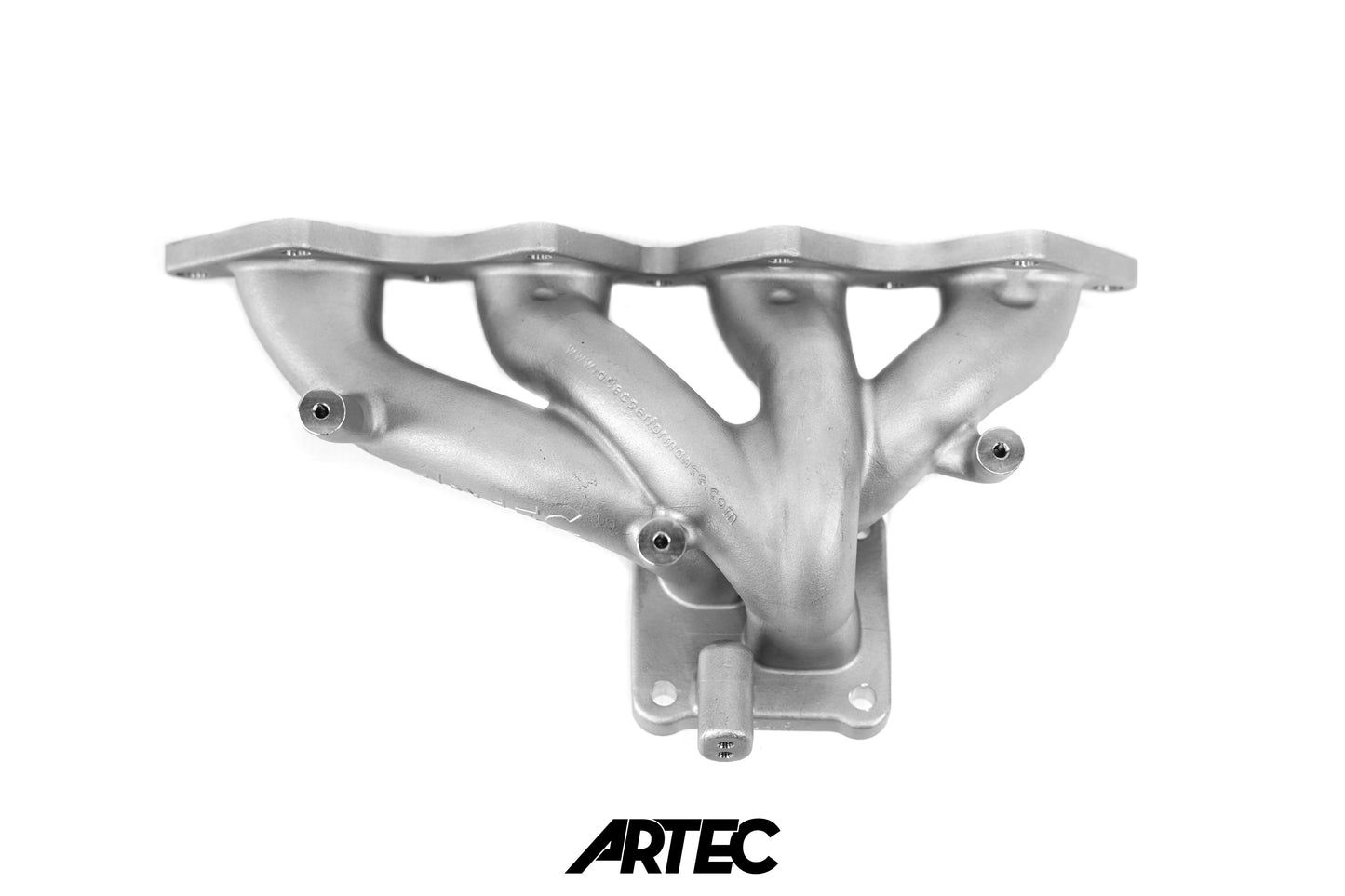

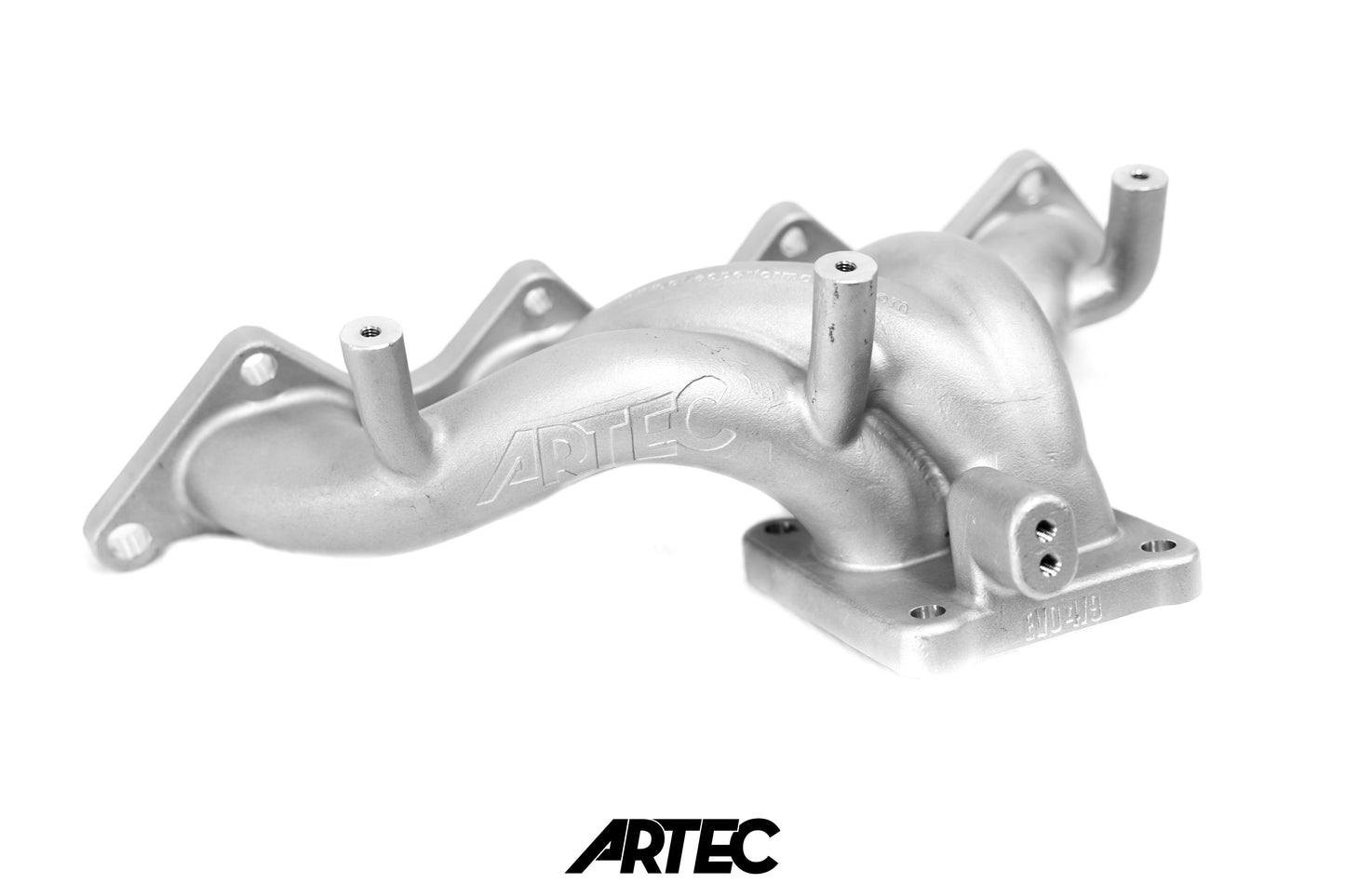

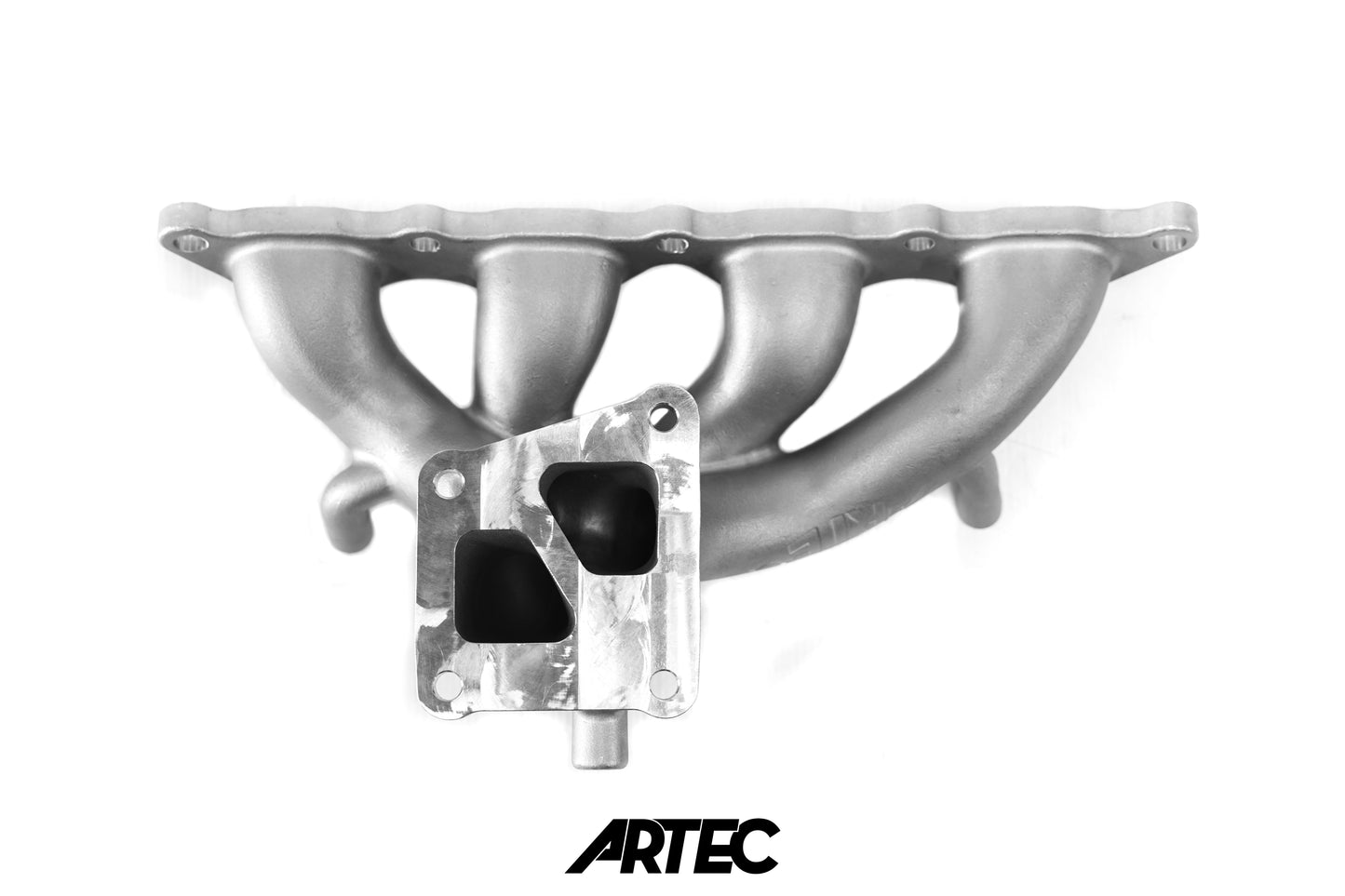

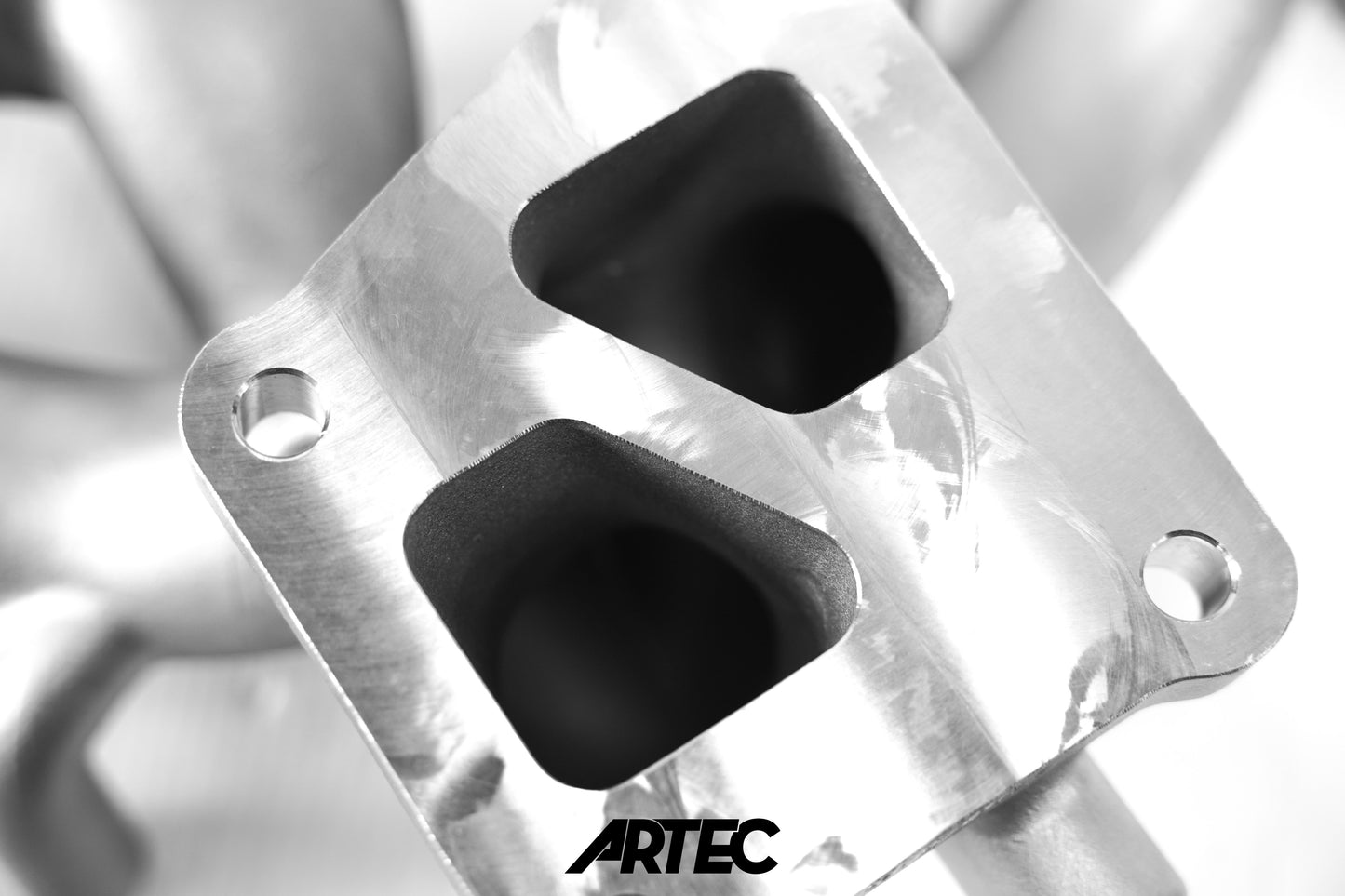

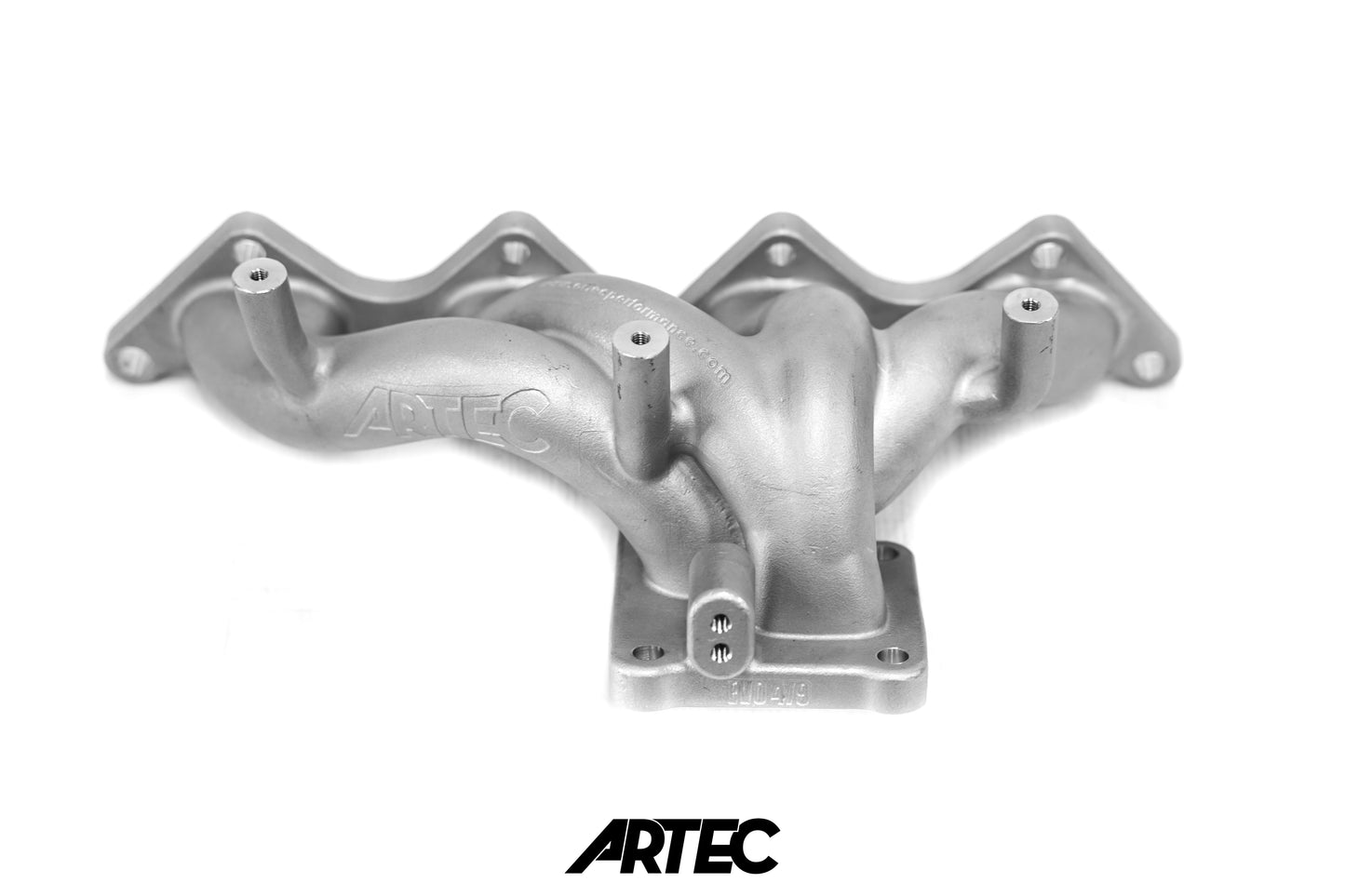

Mitsubishi Evo 4-9 4G63 Direct Replacement Exhaust Manifold

Mitsubishi Evo 4-9 4G63 Direct Replacement Exhaust Manifold

Regular price £888.25 GBP
Regular price Sale price £888.25 GBP
Sale Sold out

Any local duties, customs and taxes that apply must be paid by the recipient upon delivery

Specifications:

  • Material: SUS347 Stainless Steel Investment Cast Construction

Features:

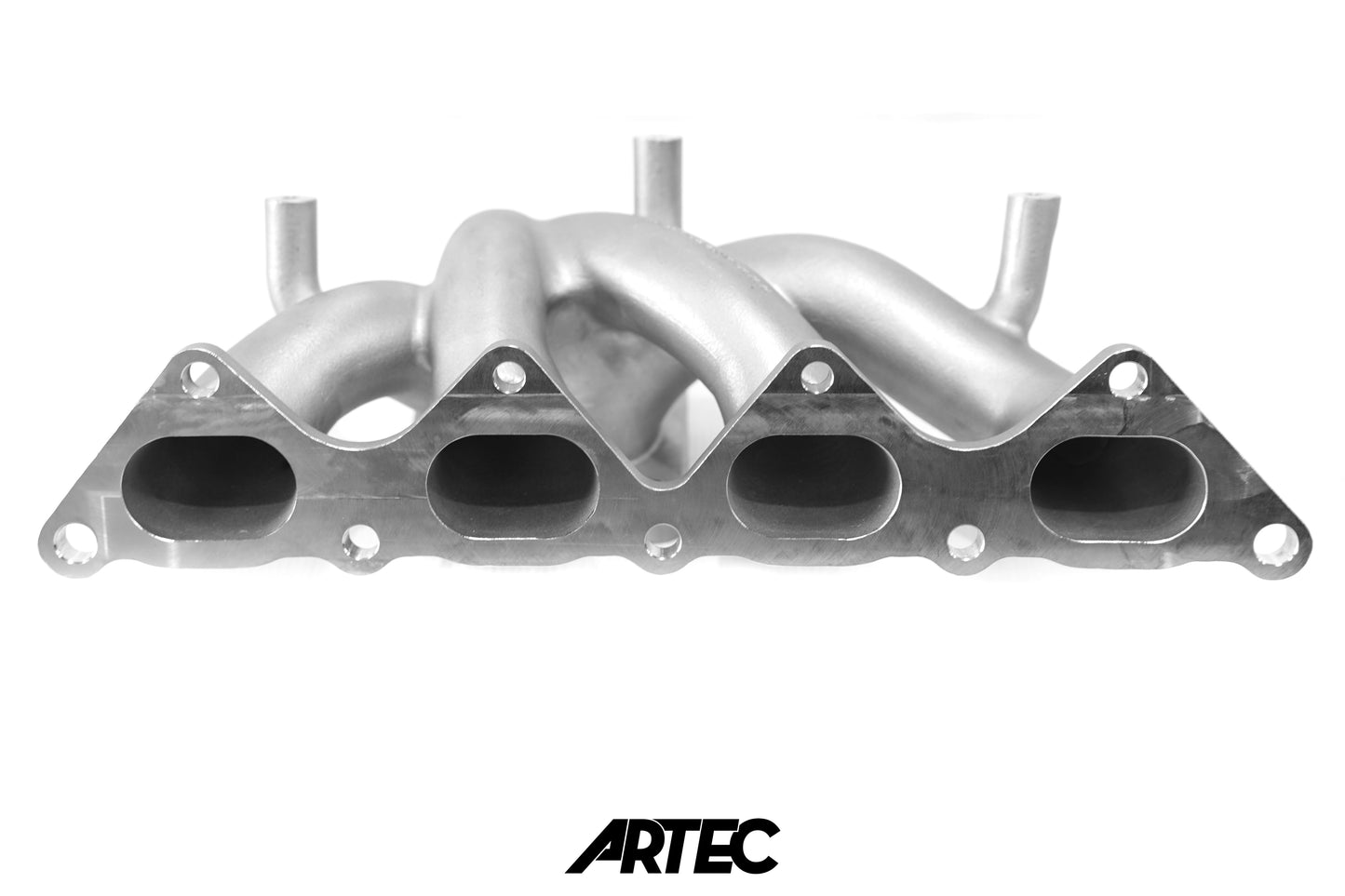

  • 33mm ID Runners for maximum flow - learn more here!
  • Direct Bolt On Compatibility with Stock Frame Turbochargers

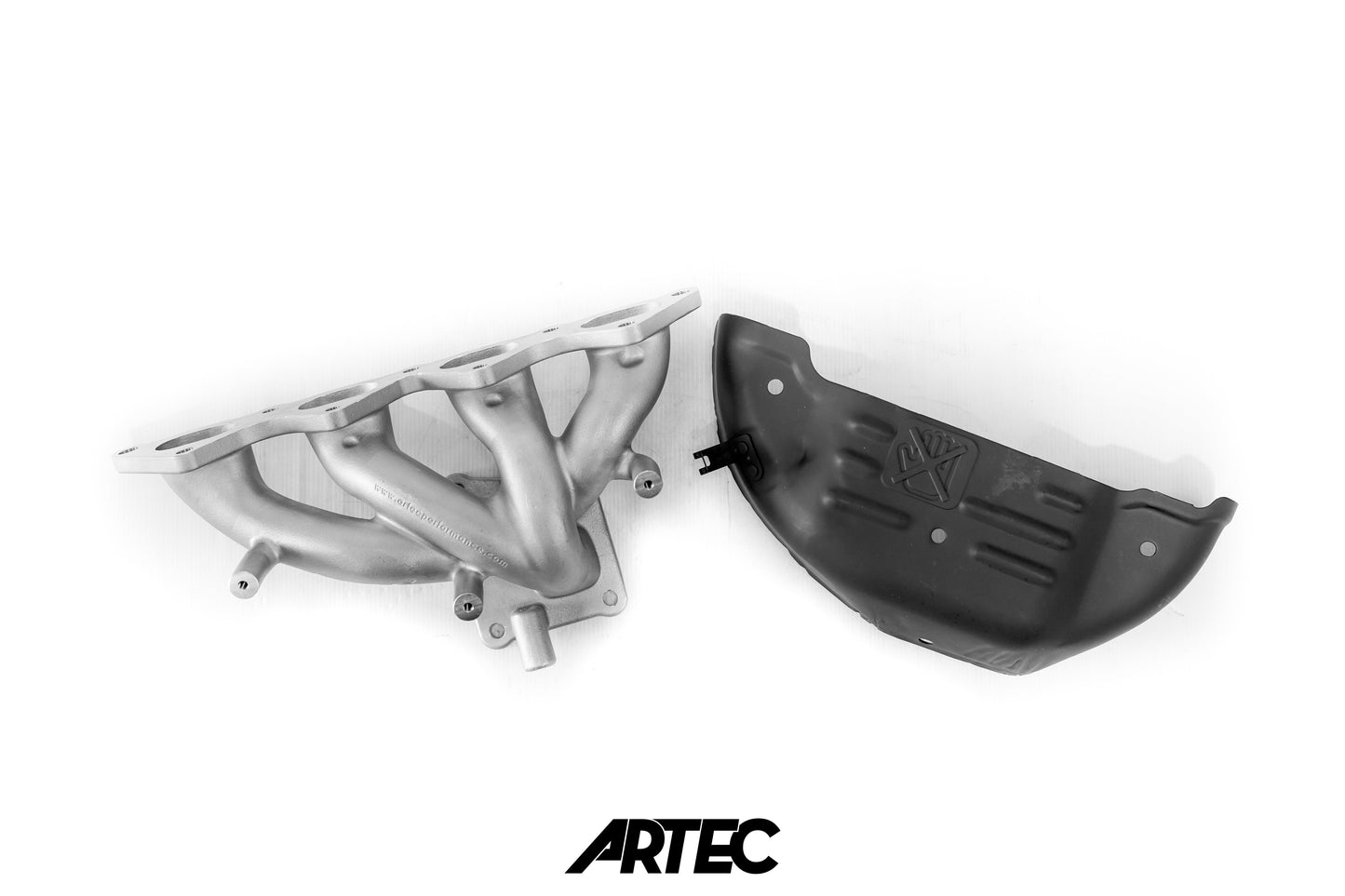

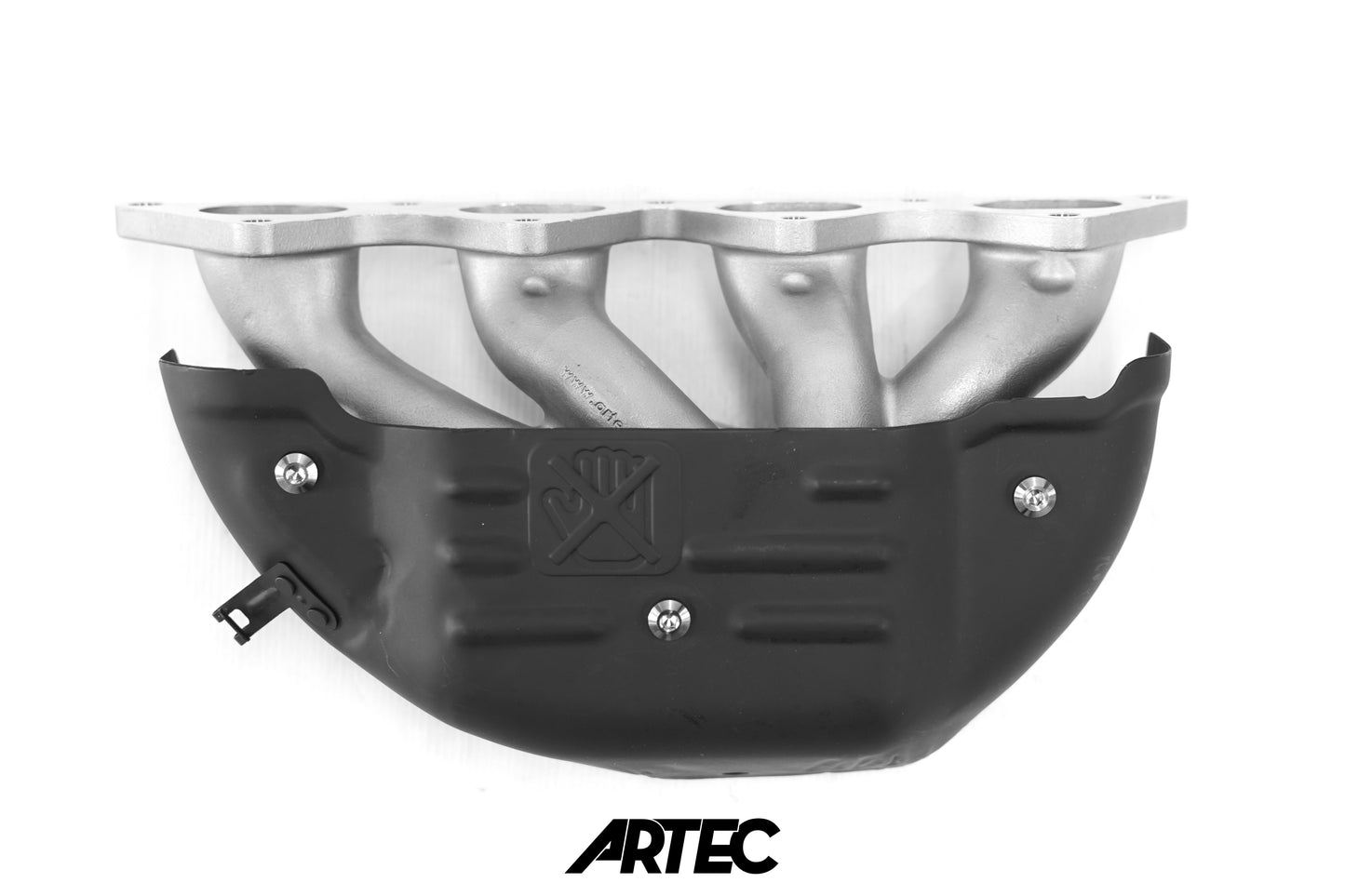

  • Bolt Hole Provisions for OEM / OEM Style Heat Shields

Package Contents:

  • Exhaust Manifold

Notes:

  • Turbo Compatibility: Stock Frame Turbochargers
  • Designed in Australia with Lifetime Warranty*
View full details

Additional Information

Collapsible content

Notes

Our Evo 4-9 Standard Replacement manifold allows you to retain the OEM heat shield as well as using our 33mm runners for a sharp throttle response. After scanning and extensively testing the factory 4G63 Evolution turbo manifold, our conclusion is that only 3 out of the 4 runners reach the collector and 2 of the runners meet just before the turbo flange area. This exposes the factory item to pre-emptive failure as the extreme heat collects in such a small diameter of pipe with twice the exhaust gases it would normally experience. All this additional heat in this area also causes the metal to expand which gives way to movement and leaves it prone to cracking (a common problem). All Artec manifolds are guaranteed to fit your engine bay and auxiliaries without headache or fuss and are designed to be installed in approximately 10 minutes. The bolt locations are easily accessible as the cast was designed around them for ease of installation and accessibility. Artec stainless manifolds are the unrivalled in their simplicity and efficiency!

Resources and Installation Guides

About ARTEC Manifolds

At ARTEC we have revolutionised the turbo manifold industry with our industry leading SUS347 stainless steel investment cast manifolds.

All of our manifolds are engineered and designed from the ground up, CFD simulated and, most importantly, tested in the real world to achieve maximum flow and heat dispersion. The cast stainless construction allows us to maximise flow and efficiency by having smooth merging angles and eliminating any restrictions from tight radius bends or runners.

The result is a truly optimised manifold with consistent performance, resistant to heat pooling and cracking, plus a beautiful smooth exterior finish.

Designed and tested in Australia, backed with a lifetime warranty.
