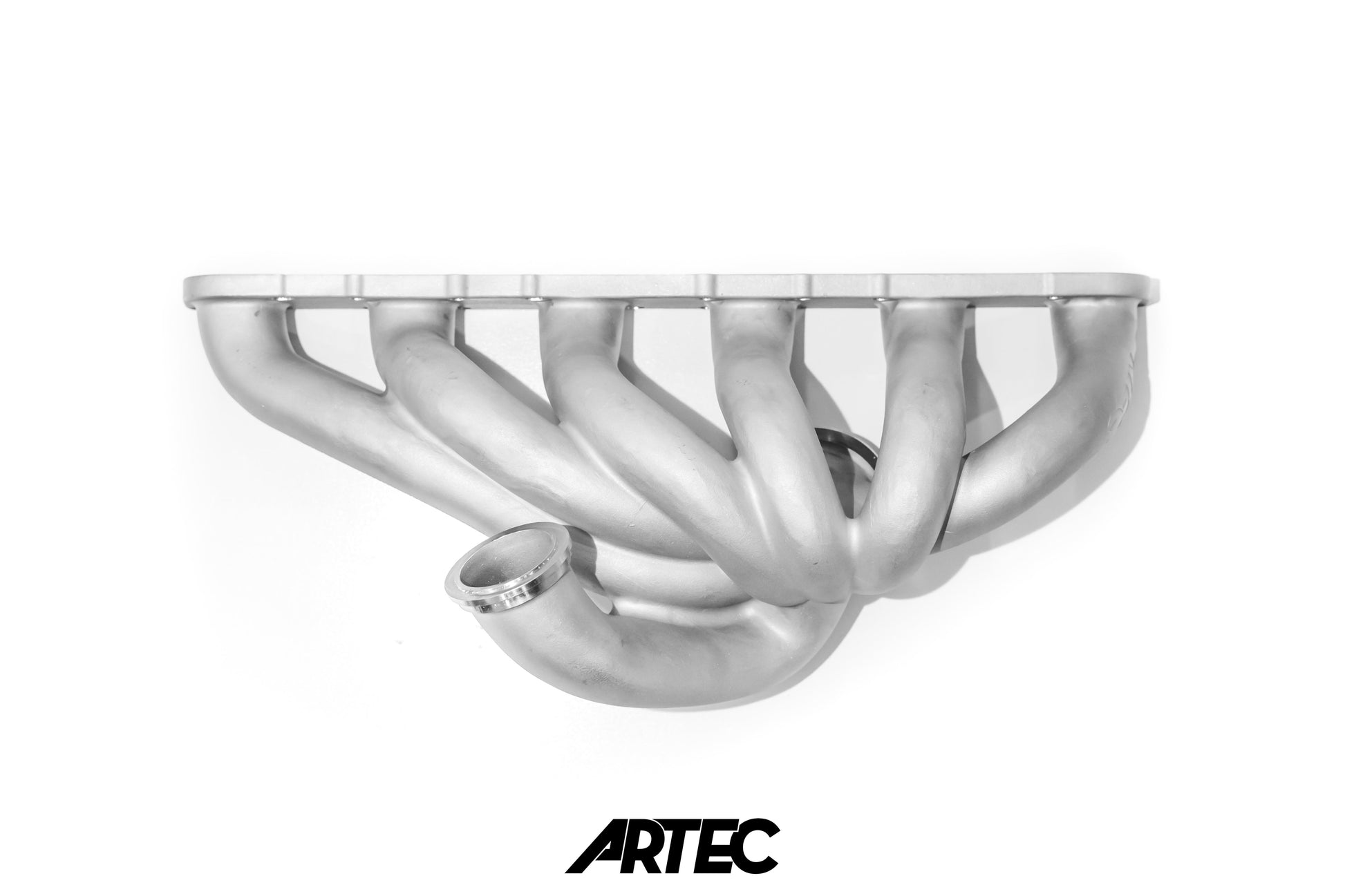

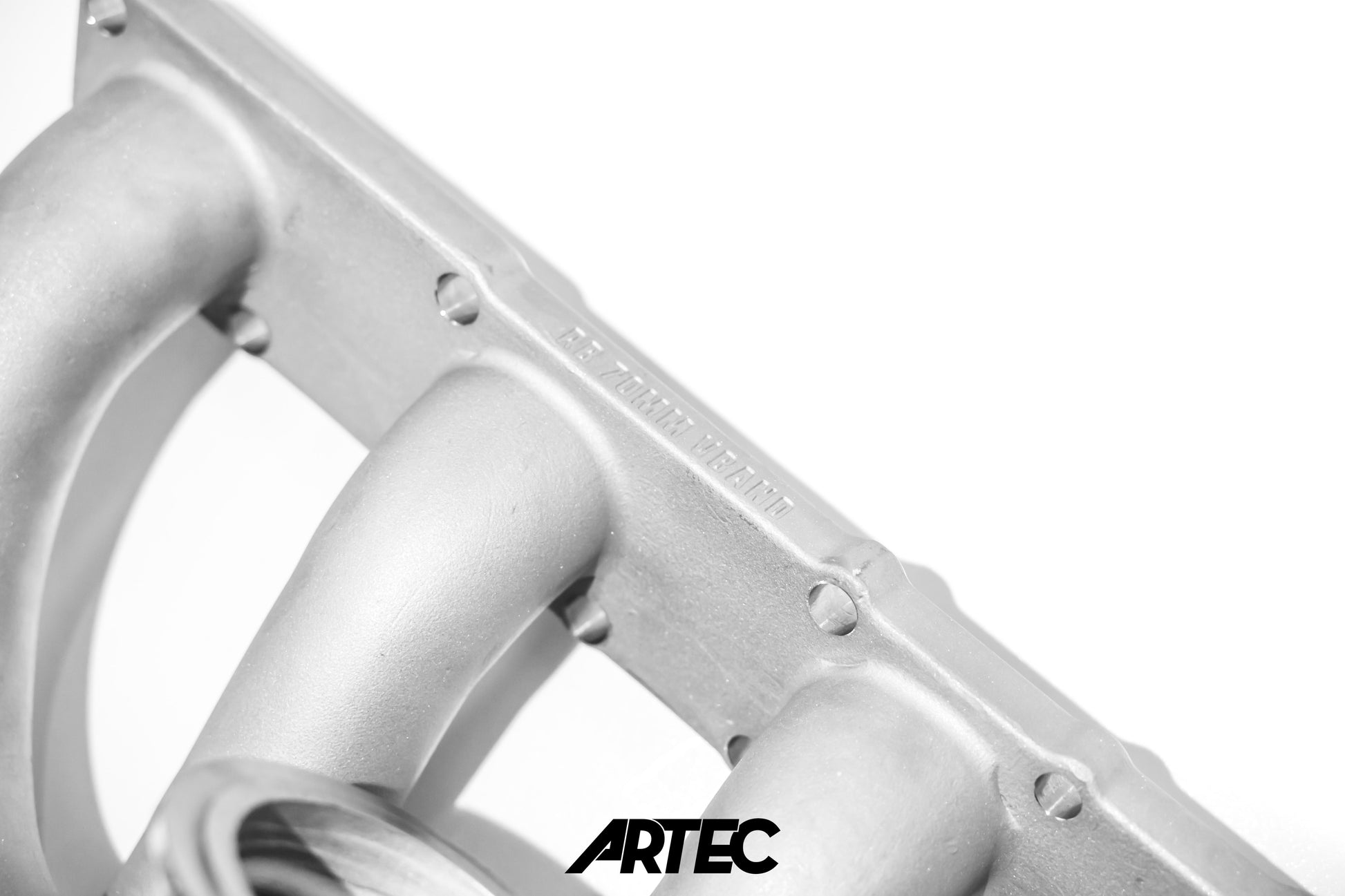

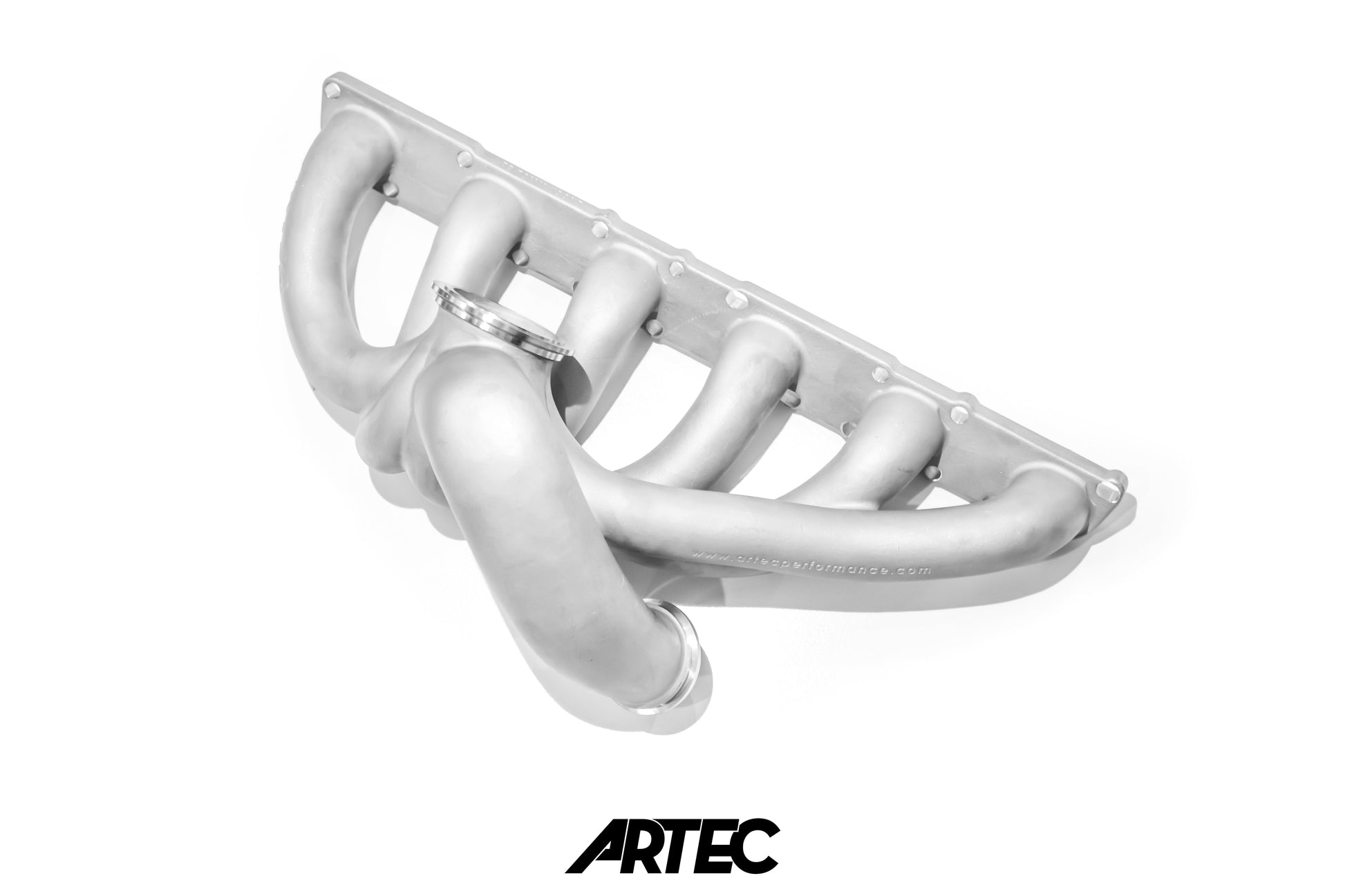

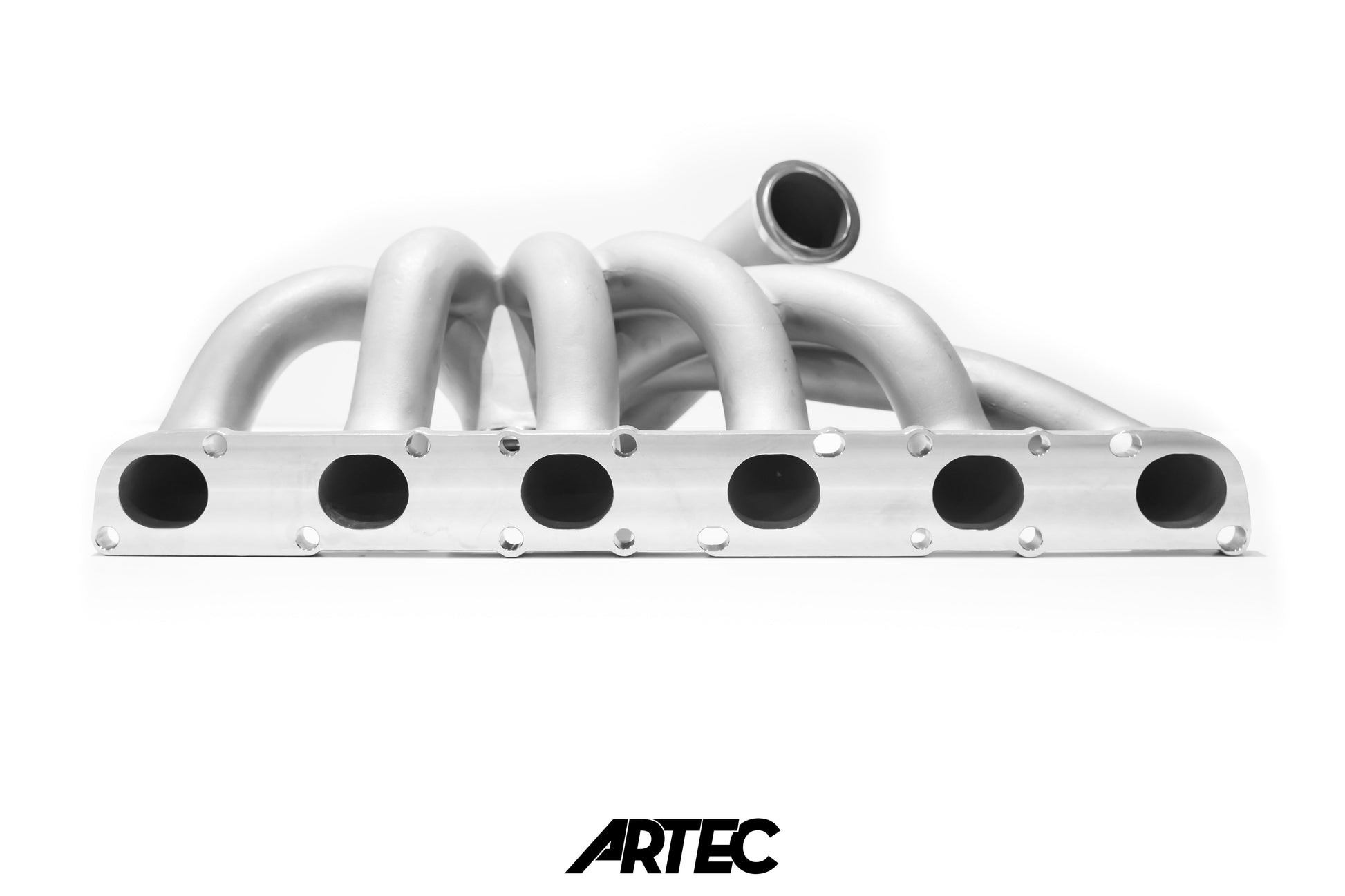

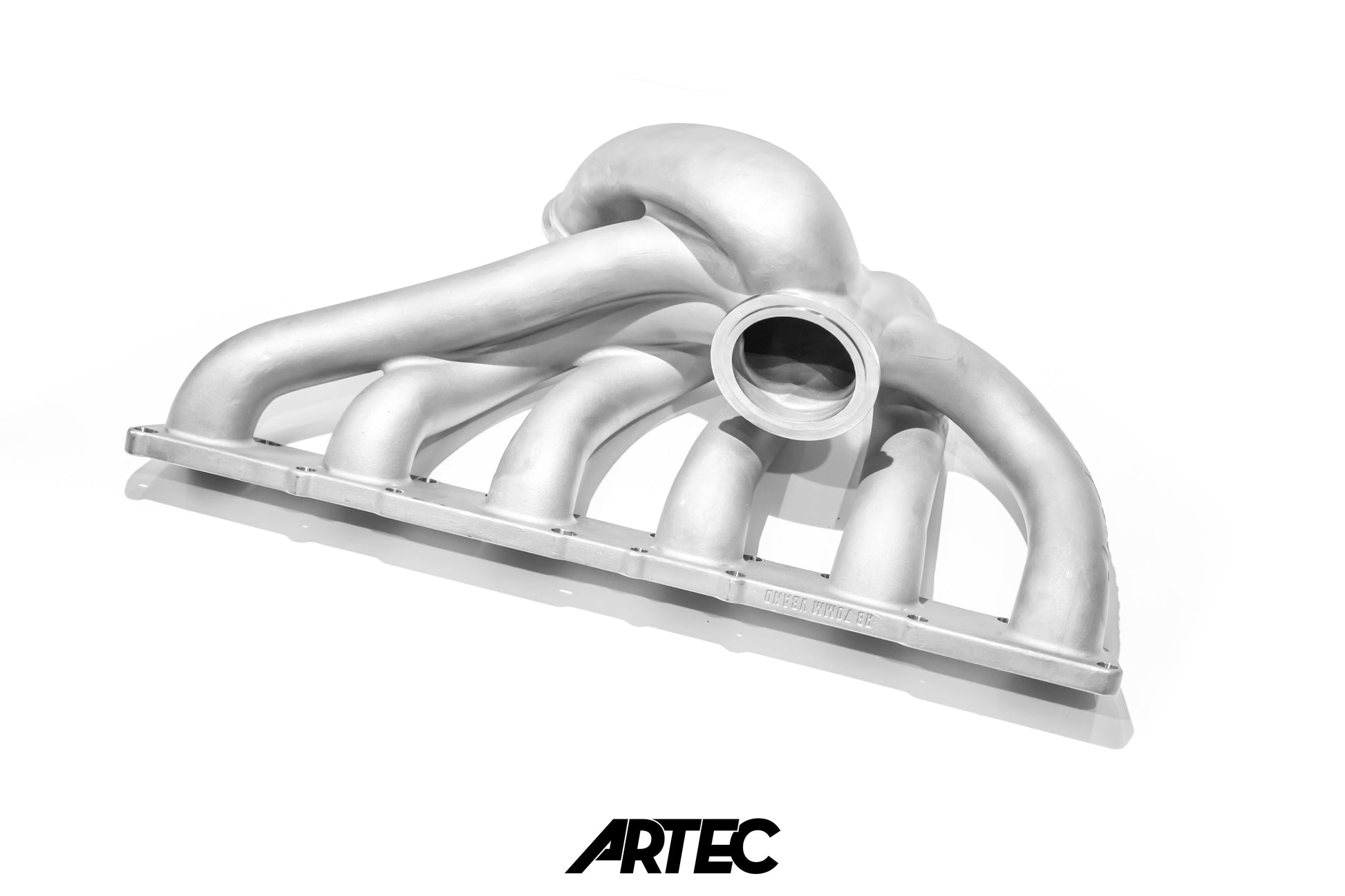

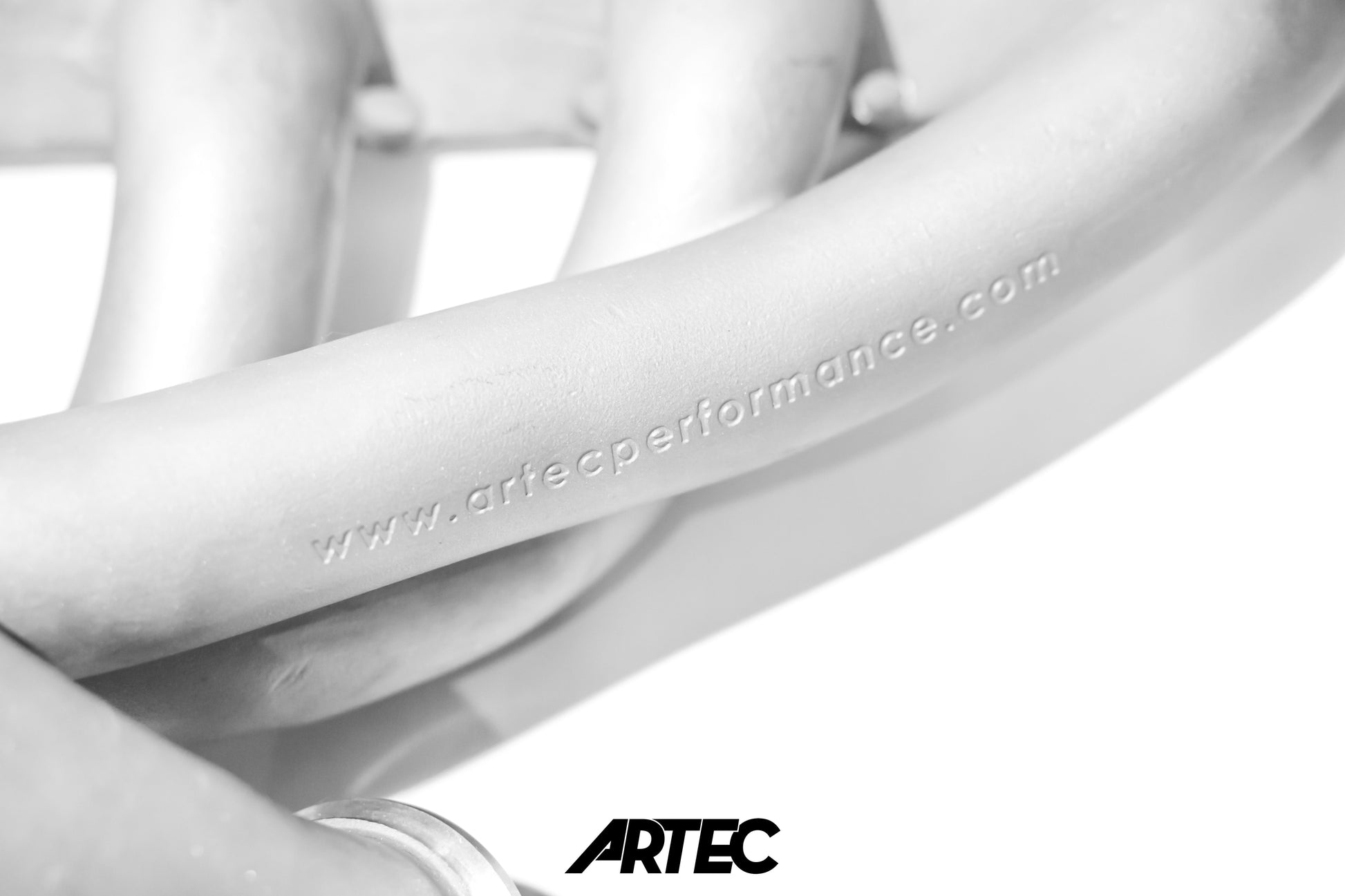

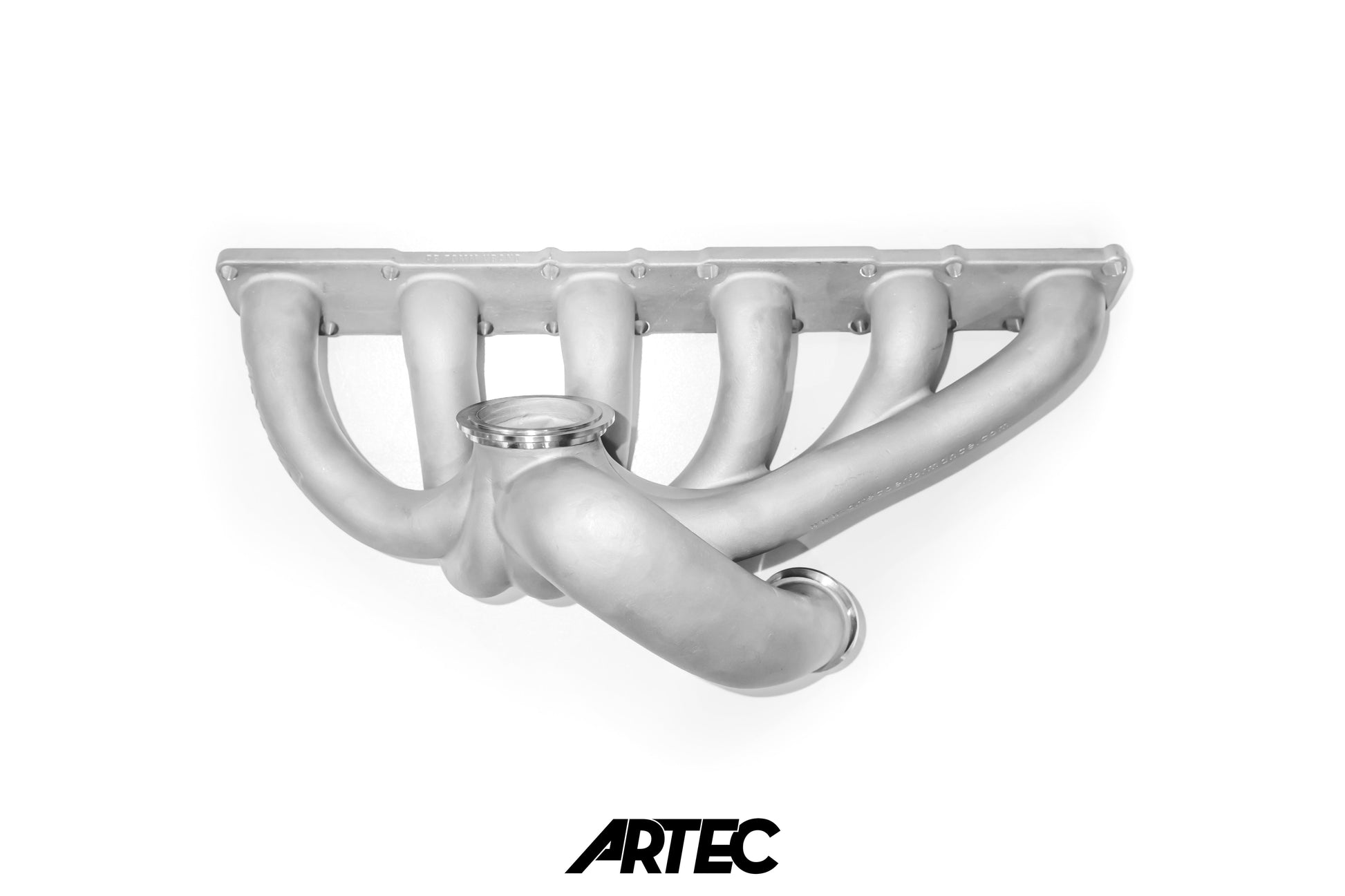

Nissan RB 70mm V-Band Exhaust Manifold Standard Rotation

Nissan RB 70mm V-Band Exhaust Manifold Standard Rotation

Ā£1,462.00 GBP
Ā£1,462.00 GBP
Sale Sold out

Any local duties, customs and taxes that apply must be paid by the recipient upon delivery

Product Features

  • Industry leading SUS347 stainless steel investment cast exhaust manifold
  • Cast stainless construction allows ARTEC manifolds to deliver superior flow and efficiency. Smoother merging angles can be achieved versus traditional manifolds, and tight radius bends and runners can also be eliminated which can cause restriction.Ā
  • Retains OEM A/C and Power steering with the HICAS pump, also leaving plenty of space for running oil and water lines
  • Rated for 1200+ wheel horsepower

Engine Compatibility

  • All Nissan RB20
  • All Nissan RB25
  • All Nissan RB26
  • NOTE: RB30 bottom end can be used with any of the engines above with no clearance issues

Turbocharger Compatibility

  • The ARTEC V-Band Ring System allows you to install turbos from all of the big brands without having to chop and change flanges or manifolds!
  • BIG DADDY MANIFOLD RANGEĀ

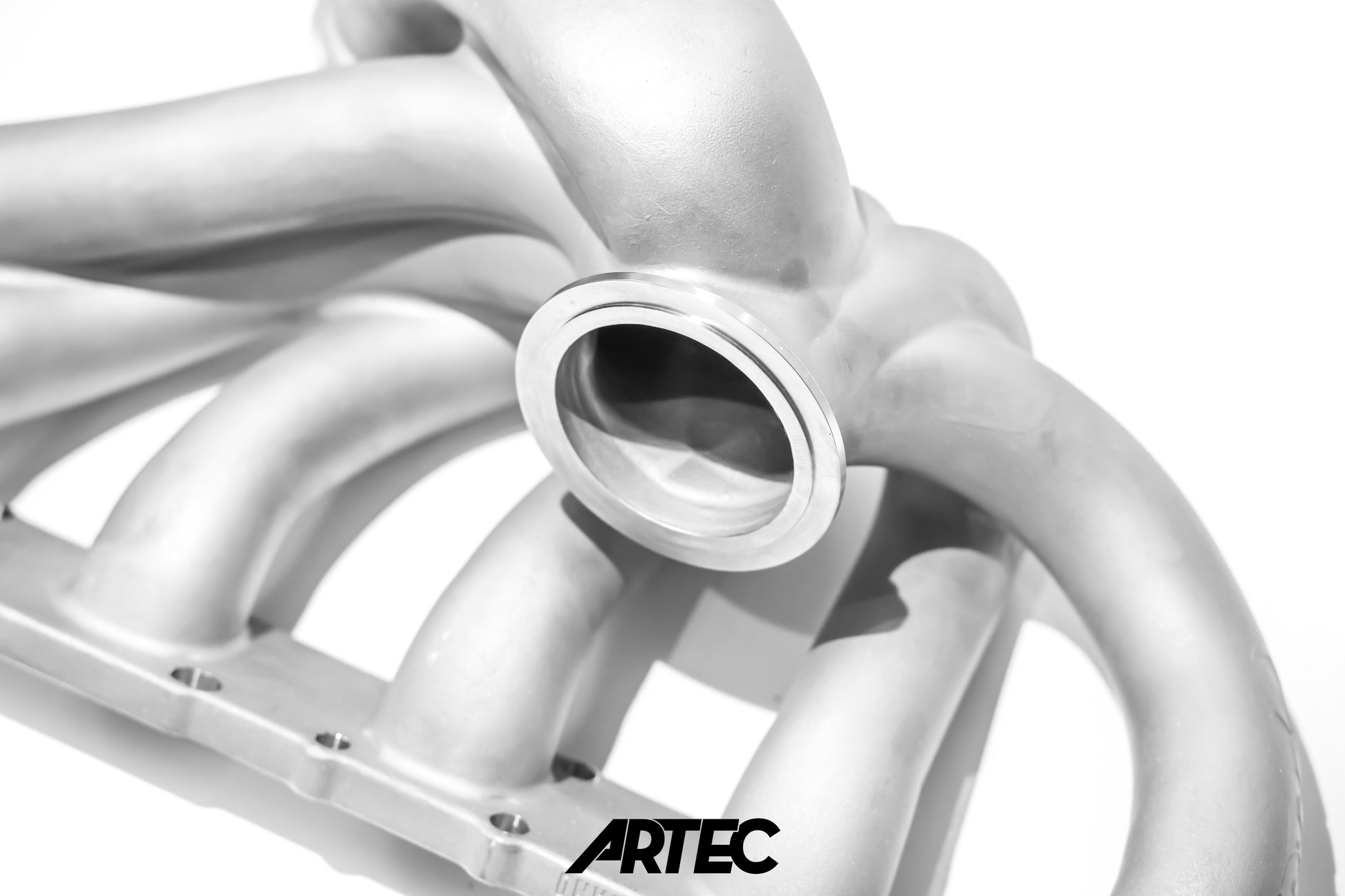

  • Our ARTEC Big Daddy manifolds feature a 70mm V-band turbo flange and supports the following turbochargers by using the appropriate locating rings:
    • Garrett G40 to G45
    • Precision 6870 to 7675
  • NOTE: Designed to fit Garrett and Precision turbochargers, however turbochargers from other manufacturers may fit provided they use the same flange diameters and profiles

Wastegate Compatibility

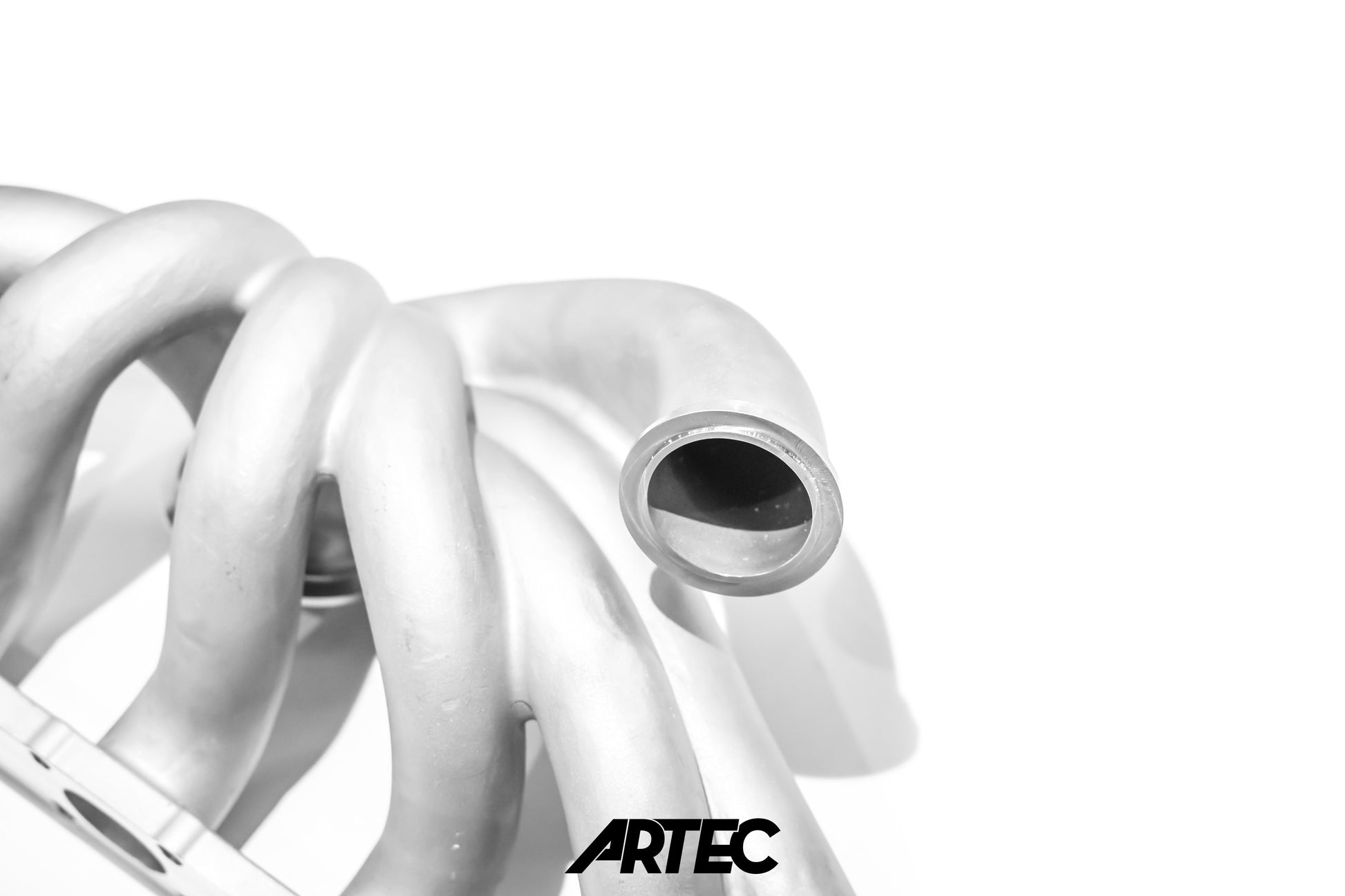

  • Features a single 50mm wastegate flange
  • Installation of a 60mm wastegate is possible by cutting and welding a new flange however this has only been necessary in setups running over 1300 wheel horsepower
  • NOTE: Designed around Turbosmart, Precision and GFB wastegates, however wastegates from other manufacturers may fit provided they use the same flange diameters and profiles

Chassis Compatibility

  • Designed to fit standard Nissan Skyline R32 / R33 / R34 chassisĀ
  • Confirmed fitment:
    • Nissan 350Z (Z33)
    • Nissan 370Z (Z34)
    • Nissan S13
    • Nissan S14
    • Nissan S15
  • Please refer to the ARTEC Installation Gallery for fitment in other chassis

Package Contents:

  • 1x Nissan RB 70mm V-Band Standard Rotation Exhaust Manifold
  • 1x ARTEC V-Band Locating Ring for Garrett / Turbosmart
  • 1x ARTEC V-Band Locating Ring for Precision Turbo

Specifications:

  • Material: SUS347 Stainless SteelĀ
View full details

Additional Information

Notes

Finally we can show you one of our most complex designs. Like our RB High Response manifold (Reverse Rotation) this design will fit RB20/25 and 26. You can also use the same model to fit an RB30 bottom end, with its taller deck height. We used a garrettmotion G45-1450 and a G40-900 for the development of this manifold along with a Turbosmart 50mm wastegate. If you want more flow you can simply cut and weld a 60mm wastegate/flange on. You can also run Precision turbo 6870 through to 7675 Standard rotation Big shout out to both Platinum Racing Products and Birrong Automotive for their assistance with the development. Birrong will also be testing one very soon on a special R34 GTR with their special 3.2L combo that they offer. We designed this so if you start with a build and it ends up a little crazy and the motor goes 3L-3.4L you can still use the same manifold. This design also retains AC and Power steering with the HICAS pump, plus has heaps of space for easy oil and water lines and space for our thermal management option that will be later available.

Resources and Installation Guides

About ARTEC Manifolds

At ARTEC we have revolutionised the turbo manifold industry with our industry leading SUS347 stainless steel investment cast manifolds.

All of our manifolds are engineered and designed from the ground up, CFD simulated and, most importantly, tested in the real world to achieve maximum flow and heat dispersion. The cast stainless construction allows us to maximise flow and efficiency by having smooth merging angles and eliminating any restrictions from tight radius bends or runners.

The result is a truly optimised manifold with consistent performance, resistant to heat pooling and cracking, plus a beautiful smooth exterior finish.

Designed and tested in Australia, backed with a lifetime warranty.
