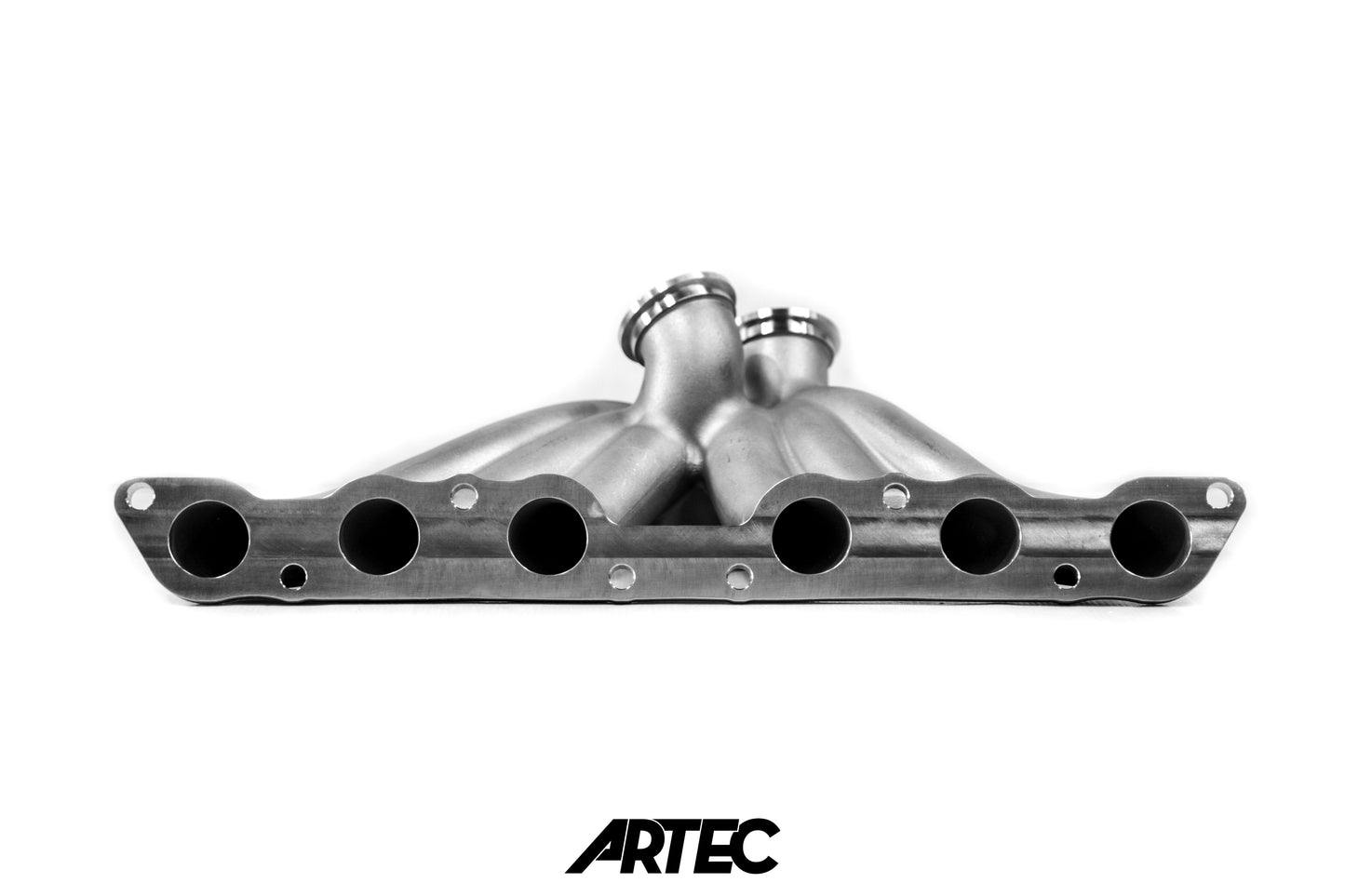

Toyota 2JZ GE T4 Exhaust Manifold
Toyota 2JZ GE T4 Exhaust Manifold
Specifications:
- Material: SUS347 Stainless Steel Investment Cast Construction
Features:
- V-Band Mounting System
- Dual 44/45/46mm Wastegate Flange Mount
Package Contents:
- Exhaust Manifold
Notes:
-
Example compatable turbos: Garrett G30 to G45 or Precision 6870 to 8685.
- Designed in Australia with Lifetime Warranty*
Share
Collapsible content
Notes
Our 2JZ t4 manifold allows you to fit anything from a GT30/G35 size turbo through to the new G40/G42/G45 and turbos from PTE such as 6262 to 6766, 6870, 7275 all the way to an 8685 if you really want to. These manifolds have no welded on flanges as even the V-band are accurately machined into the 347 Stainless Steel manifold. The gate flanges allow for all the common 44/45and 46mm wastegate with positions to easily allow for plumb back or vent to atmosphere.
Resources and Installation Guides
About ARTEC Manifolds
At ARTEC we have revolutionised the turbo manifold industry with our industry leading SUS347 stainless steel investment cast manifolds.
All of our manifolds are engineered and designed from the ground up, CFD simulated and, most importantly, tested in the real world to achieve maximum flow and heat dispersion. The cast stainless construction allows us to maximise flow and efficiency by having smooth merging angles and eliminating any restrictions from tight radius bends or runners.
The result is a truly optimised manifold with consistent performance, resistant to heat pooling and cracking, plus a beautiful smooth exterior finish.
Designed and tested in Australia, backed with a lifetime warranty.
